Product parameters:
Model: YTUP-30
System water production (25 ℃): 30 liters/hour
System process: PP+UDF+CTO+RO+DI+UP
Water inlet requirements: Urban tap water TDS<250ppm, 5-45 ° C, 0.02-0.5Mpa, pH 3-10
Purification system
Pre processing unit 10 inch PP filter cartridge x 1+10 inch granular activated carbon filter cartridge x 1+10 inch sintered activated carbon filter cartridge x 1
RO reverse osmosis unit: 200GPD RO reverse osmosis membrane x 1
Post purification unit: Ultra purification column × 4
UP Ultra Pure Water
Electrical resistivity/conductivity: 18.25M Ω .cm@25 ℃/0.054 μs/ cm@25 ° (＜ 0.1 μs/cm)
Heavy metal ions:<0.1ppb
Total Organic Carbon (TOC):<10ppb
Heat source/endotoxin:-
Microbial bacteria:<1CFU/ml
Ribonuclease:-
Deoxyribonuclease:-
Particle size (>0.22 μ m):<1/ml
RO reverse osmosis
TDS value: RO water TDS (total solid solubility ppm) ＜ influent TDS × 4% (desalination rate ＞ 99%)
Separation rate of divalent ions: 95% -99% (when using new RO membranes)
Organic separation rate:>99% when MW>200 Dalton
Particle and bacterial separation rate:>99%
Maximum production capacity of reverse osmosis water: 2.0 liters/minute (open pressure water storage tank)
Front water outlet: 2; RO reverse osmosis nozzle, UP ultra pure nozzle
Side outlet: inlet, pressure bucket, wastewater outlet
Work pressure monitoring: 0-1Mpa, 0-150PSI
Digital water quality monitoring: TDS test pen+LCD online resistivity, conductivity, TDS, water temperature monitoring
External dimensions (length x width x height): 44 x 45 x 46cm
Power supply: 220V, 50HZ
Power: 62W
Weight: 28kg
Standard configuration: The host includes 1 set of purification column, TDS test pen, and accessory package (optional) 3.2G external water bucket
- Product Details
- Product manual

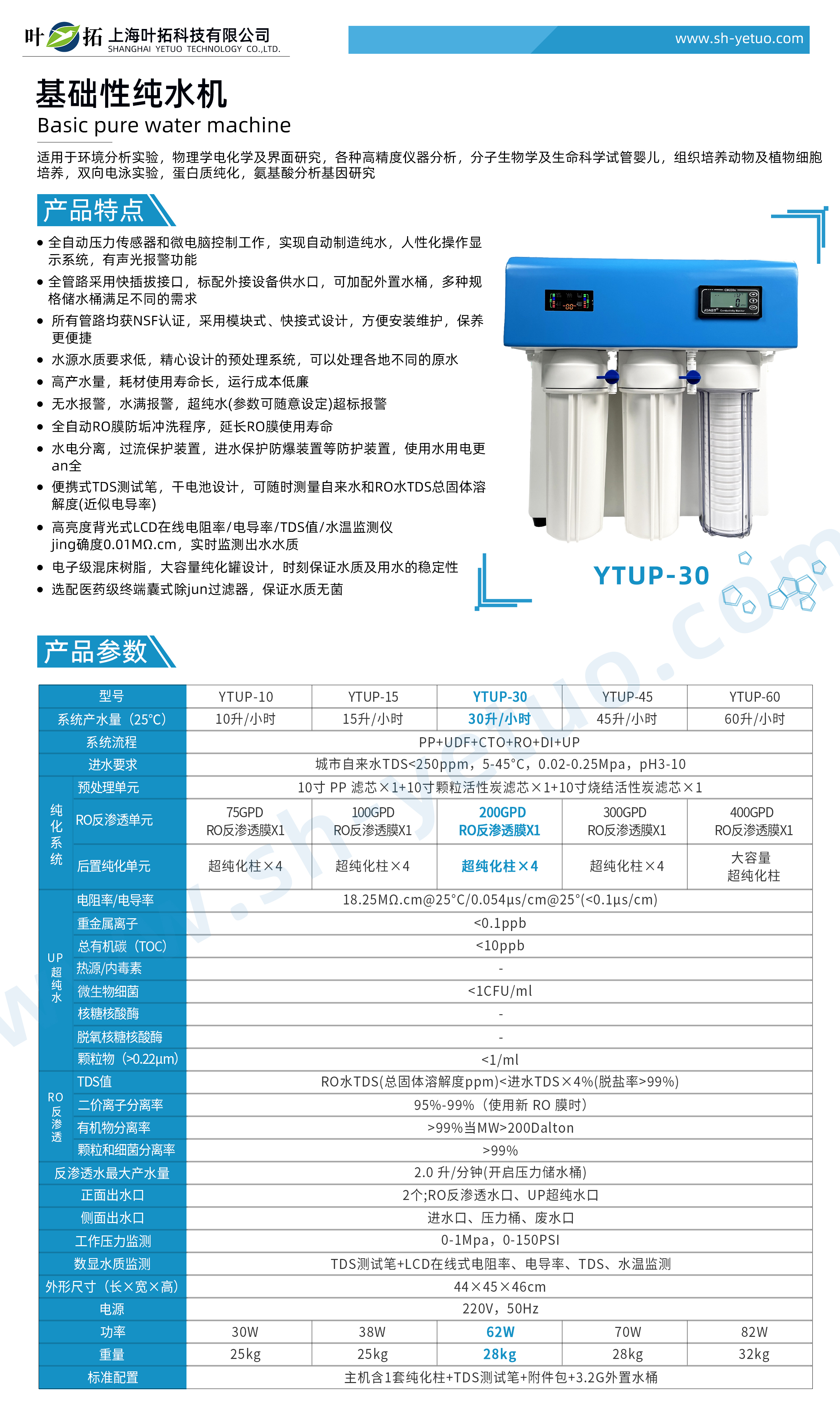

Ye Tuo YTUP-30 Basic Ultra Pure Water Machine
Model: YTUP-30
Product Overview:
Suitable for environmental analysis experiments, physics electrochemistry and interface research, various high-precision instrument analysis, molecular biology and life sciences in vitro fertilization, tissue culture of animal and plant cells, two-dimensional electrophoresis experiments, protein purification, amino acid analysis gene research.
Features of Ye Tuo YTUP-30 Basic Ultra Pure Water Machine
Fully automatic pressure sensor and microcomputer control work to achieve automatic production of pure water, user-friendly operation display system, with sound and light alarm function
The entire pipeline adopts a quick plug interface, with a standard external equipment water supply port. External water buckets can be added, and various specifications of water storage buckets can meet different needs
All pipelines are certified by NSF and adopt a modular and quick connect design, which is convenient for installation and maintenance, and more convenient for maintenance
The water quality requirements for the water source are low, and a carefully designed pre-treatment system can handle different types of raw water from different regions
High water yield, long service life of consumables, and low operating costs
● No water alarm, water full alarm, ultra pure water (parameters can be set freely) exceeding the standard alarm
● Fully automatic RO membrane anti scaling flushing program to extend the service life of RO membranes
● Water and electricity separation, overcurrent protection devices, inlet protection explosion-proof devices, and other protective devices ensure more comprehensive use of water and electricity
Portable TDS test pen, dry battery design, can measure the total solid solubility of TDS in tap water and R0 water at any time (approximate conductivity)
High brightness backlit LCD online resistivity/conductivity/TDS value/water temperature monitoring instrument with accuracy of 0.01MQ.cm, real-time monitoring of effluent water quality
Electronic grade mixed bed resin, large capacity purification tank design, always ensuring water quality and water stability
Optional pharmaceutical grade terminal bag type dust removal filter to ensure sterile water quality
